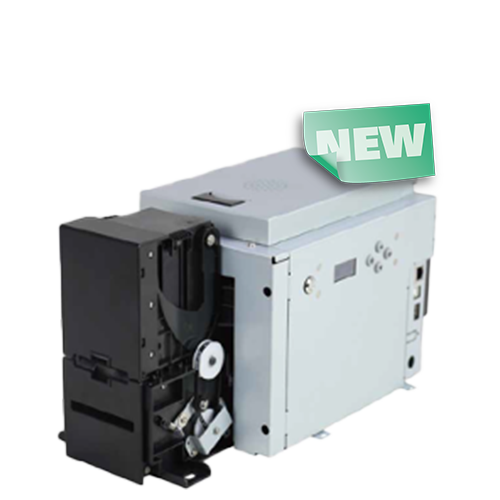

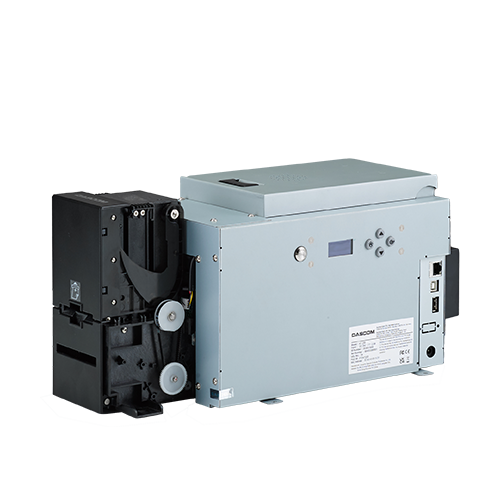

The DASCOM KT-200 is a direct thermal card printer especially designed for kiosk applications. Thanks to a modular structure design, different modules like printing, flipping or cleaning are build in a metal housing and can be combined to meet the different needs. With a compact design this printer doesn't use much space and delivers fast and crisp results. A resolution of up to 300 x 1.200 dpi Edge-to-Edge ensures printing with fine details and with a print speed of up to 180 cards/hour in colour even large print jobs can be done in a short time.

Easy exchangeable ribbons with high capacity are the base for hazel free printing in daily use. With its compact sizes the printer only use limited space inside the kiosk machine.
Highlights at a glance
  • High resolution printing up to 300 x 1200 dpi
  • Edge-to-Edge printing
  • Specific design for kiosk application
  • Full metal housing
  • Optional back-cleaning module
  • Optional cassette for 200 cards input


  • KT-200 (100 cards)
  • KT-200 (200 cards)
Card Printer KT-200

Card Printer KT-200

Resolution 300 x 1.200 dpi
Technology Direct thermal
Print speed Single Side:
180 cards/hour
Dual Side:
135 cards/hour
Interfaces 1x USB
1x Ethernet
Card format ISO ID-1/CR-80
Card thickness 0,25 - 1,27 mm
Models, options and consumables
Model overview
  • KT-200 (100 cards) (Part-No. 28.884.6343)
  • KT-200 (200 cards) (Part-No. 28.884.6134)


  • Ribbon YMCKO (500 Images) (Part.-No. 75196 006)
  • Ribbon ½YMC KO (600 Images) (Part.-No. 75196 009)
  • Ribbon K (1.600 Images) (Part.-No. 75196 012)
  • Ribbon YMCKOK (400 Images) (Part.-No. 75196 015)
  • Ribbon YMCKOO (400 Images) (Part.-No. 75196 018)
